Description
Required Bracket Kit

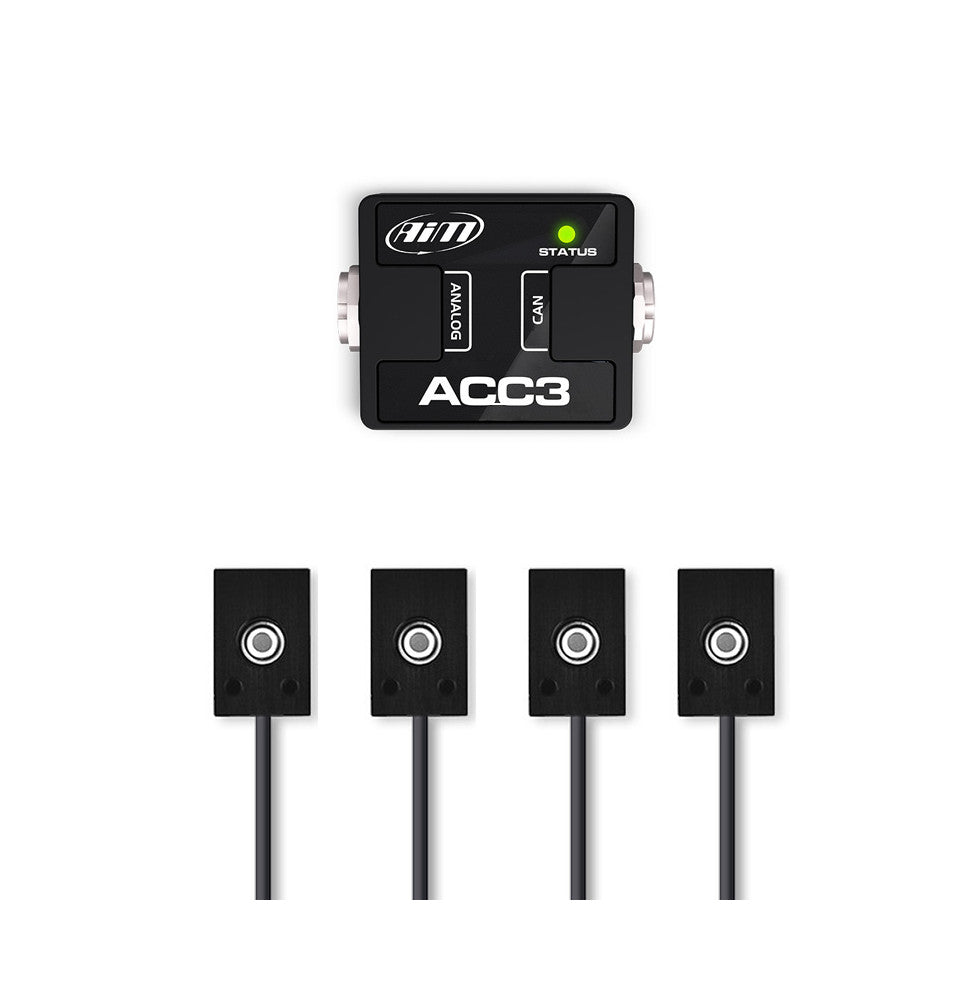

The Aim Infrared (IR) tyre temperature sensors have 4-pin black 719 binder plug connection to fit all Aim loggers and dash display/loggers.
The compact IR sensor enables contact-free tyre temperature measurements at distances ranging from 30 to 150mm. The temperature range is 0–150ºC with a cable length of 25cm.
Ensure to place the sensor far from strong heat sources like the exhaust pipe and electromagnetic interference.
Technical
- Output Signal: 0-5V
- Field of Measure: 35°
- Working Range: -20 to 120 °C
- Sensor Electrical Range: 820 Mv/-20°C, 3230Mv/120°C
Size
- Sensor Dimensions: 26.6 x 17.2mm
- Sensor Cable Length: 250mm
Waterproof
- IP65
