Description

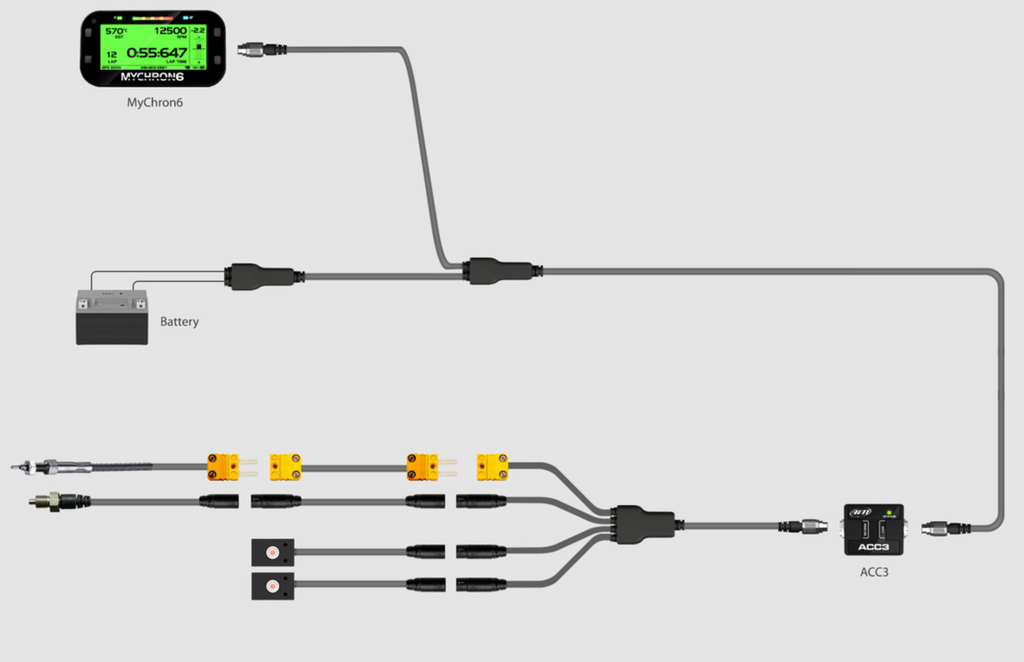

Note: You Will require the 2 Port Powered hub to Power this unit. If you are using a LCU1S, only 1 power source is needed. Do not plug in both the hub and LCU1S to power.
Click Here for the ACC3 User Manual
ACC3 (Analog CAN Converter) gives you the ability to add extra sensors to your kart like brake and throttle sensors, steering sensors, speed sensors and tyre temperature sensors. ACC3 is an expansion module that expands the possibility to read extra channels from an AiM Master unit of the last generation.
ACC3 samples up to 4 signals and transmits their converted values on AiM EXP CANbus, with a maximum frequency of 1000Hz each.
The four ACC3 signal inputs are managed as follows:
• two inputs (Ch01 and Ch02) can only be analog;
• two inputs (Ch03 and Ch04) can be both analog or digital to handle speed sensors.
